Product Overview
Available for purchase is a used Alfa Laval MOPX 205 TGT-24 Centrifuge Separator. Renowned for their durability and high efficiency, Alfa Laval disc stack separators are the industry standard for liquid-solid separation and fluid purification.

This specific unit was manufactured in Spain (1997) and features a maximum bowl speed of 7537 r/min. Driven by a recommended 4 kW motor, it is engineered to handle heavy-duty process parameters with a maximum feed density of 1100 Kg/m³.

Whether you need to purify marine diesel, lube oils, biodiesel, or process industrial wastewater, this Alfa Laval MOPX 205 offers reliable performance at a fraction of the cost of new equipment.

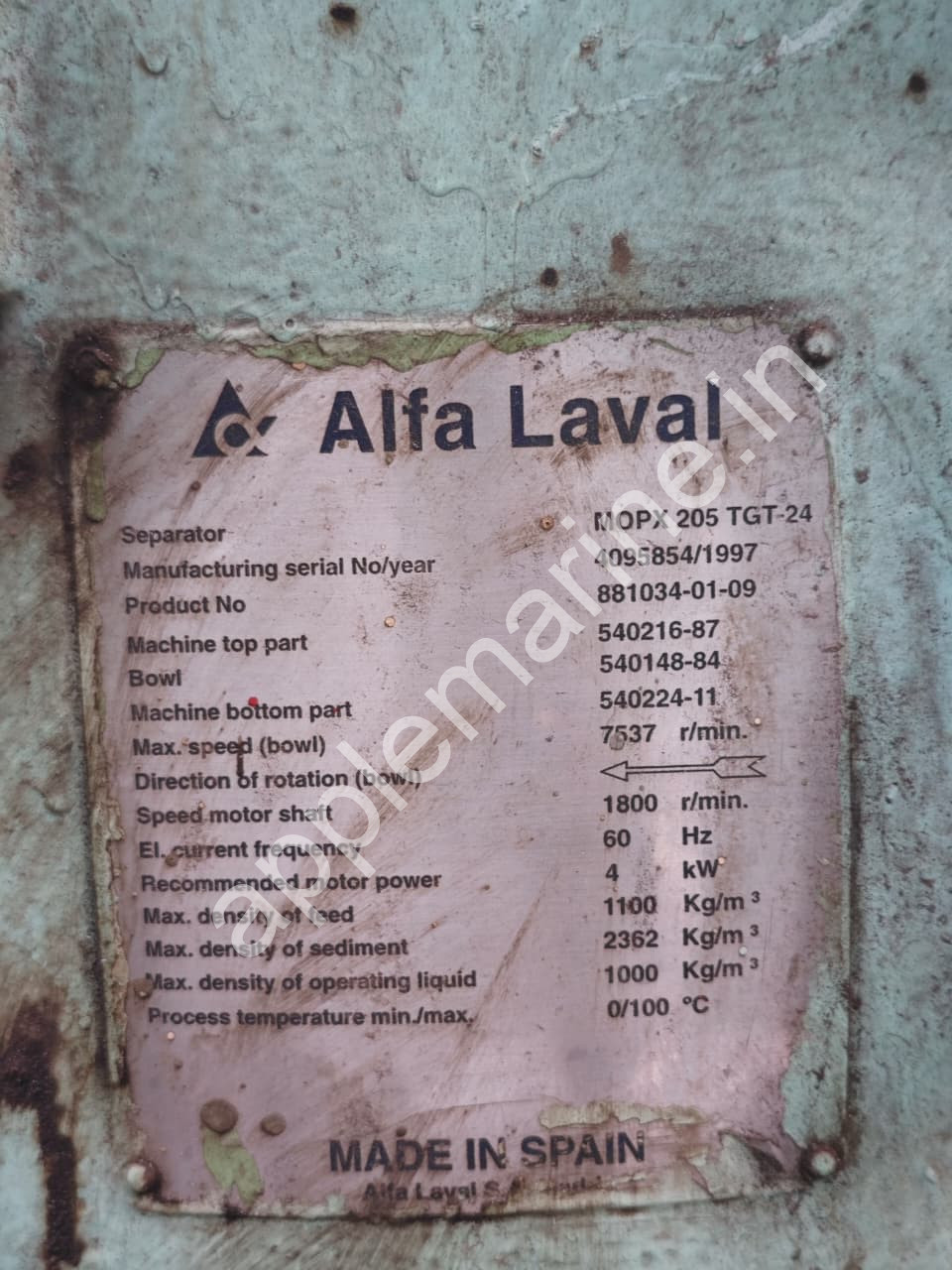

Technical Specifications

Identification & Machine Parts
- Separator Type: MOPX 205 TGT-24
- Manufacturing Serial No / Year: 4095854 / 1997
- Product No: 881034-01-09
- Machine Top Part: 540216-87
- Bowl Part No: 540148-84
- Machine Bottom Part: 540224-11
- Country of Origin: Spain

Operational Specifications
- Max. Bowl Speed: 7537 r/min
- Direction of Rotation (Bowl): Counter-clockwise (as indicated by arrow)
- Speed Motor Shaft: 1800 r/min
- Electrical Current Frequency: 60 Hz
- Recommended Motor Power: 4 kW

Process Parameters & Limits
- Max. Density of Feed: 1100 Kg/m³
- Max. Density of Sediment: 2362 Kg/m³
- Max. Density of Operating Liquid: 1000 Kg/m³
- Process Temperature Range: 0°C to 100°C

Key Applications
- Marine engine oil and lube oil purification
- Biodiesel and vegetable oil processing
- Industrial wastewater treatment
- Coolant and hydraulic oil recycling

Condition & Logistics
- Condition: Used, operational.
- Inclusions: Sold with genuine Alfa Laval major component parts as listed above.
- Please contact us directly for pricing, shipping dimensions, and freight quotes.
