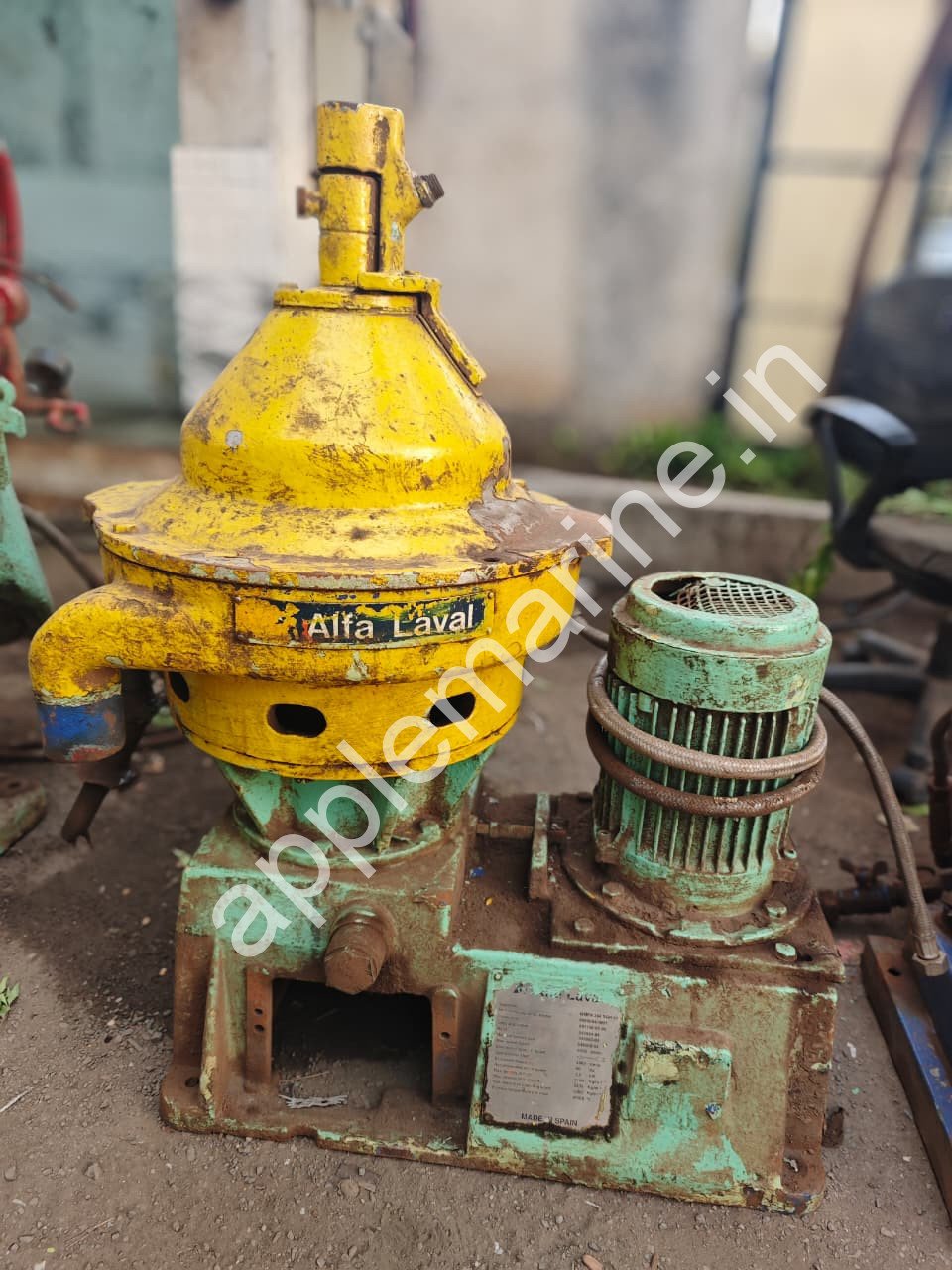

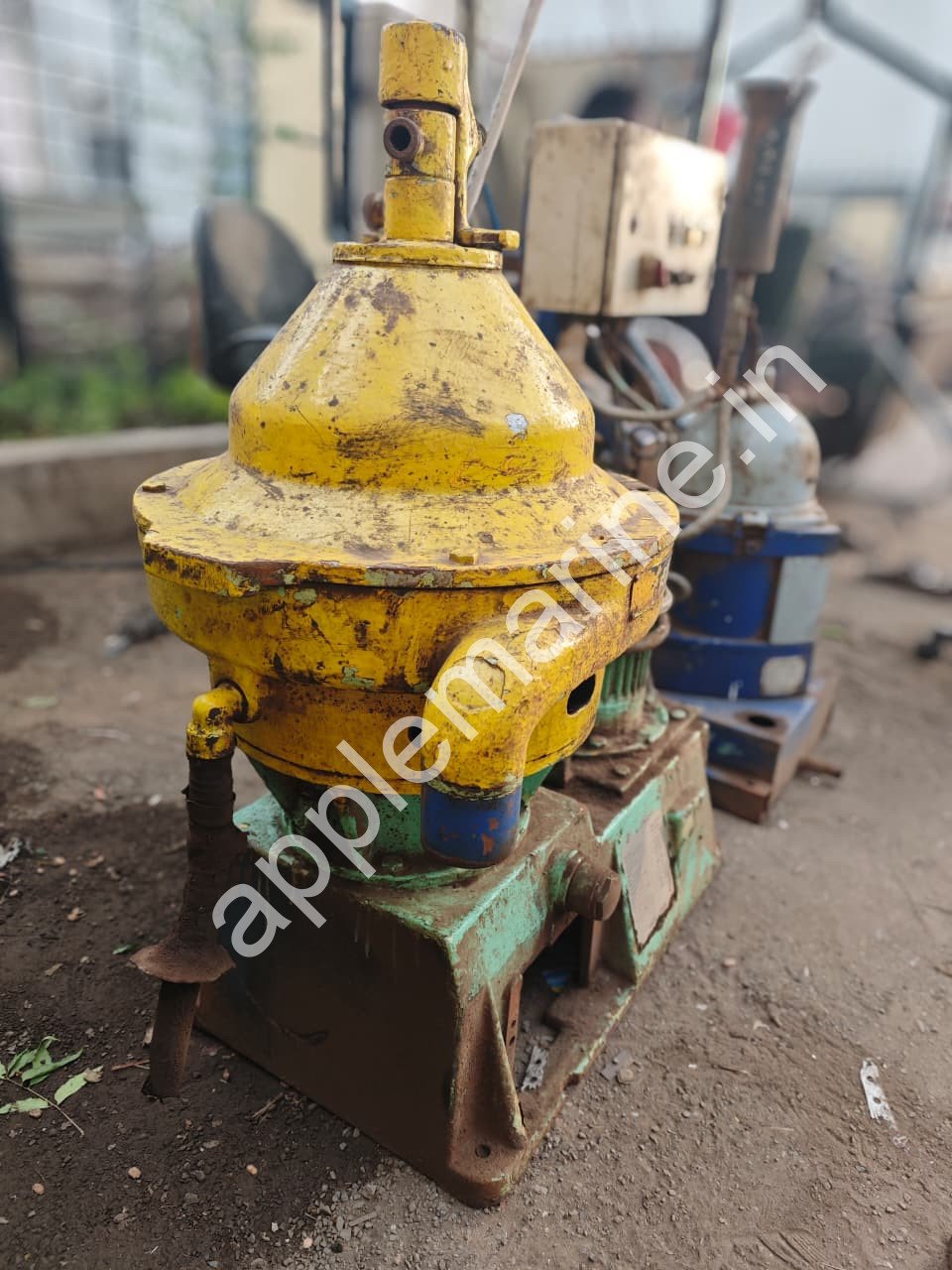

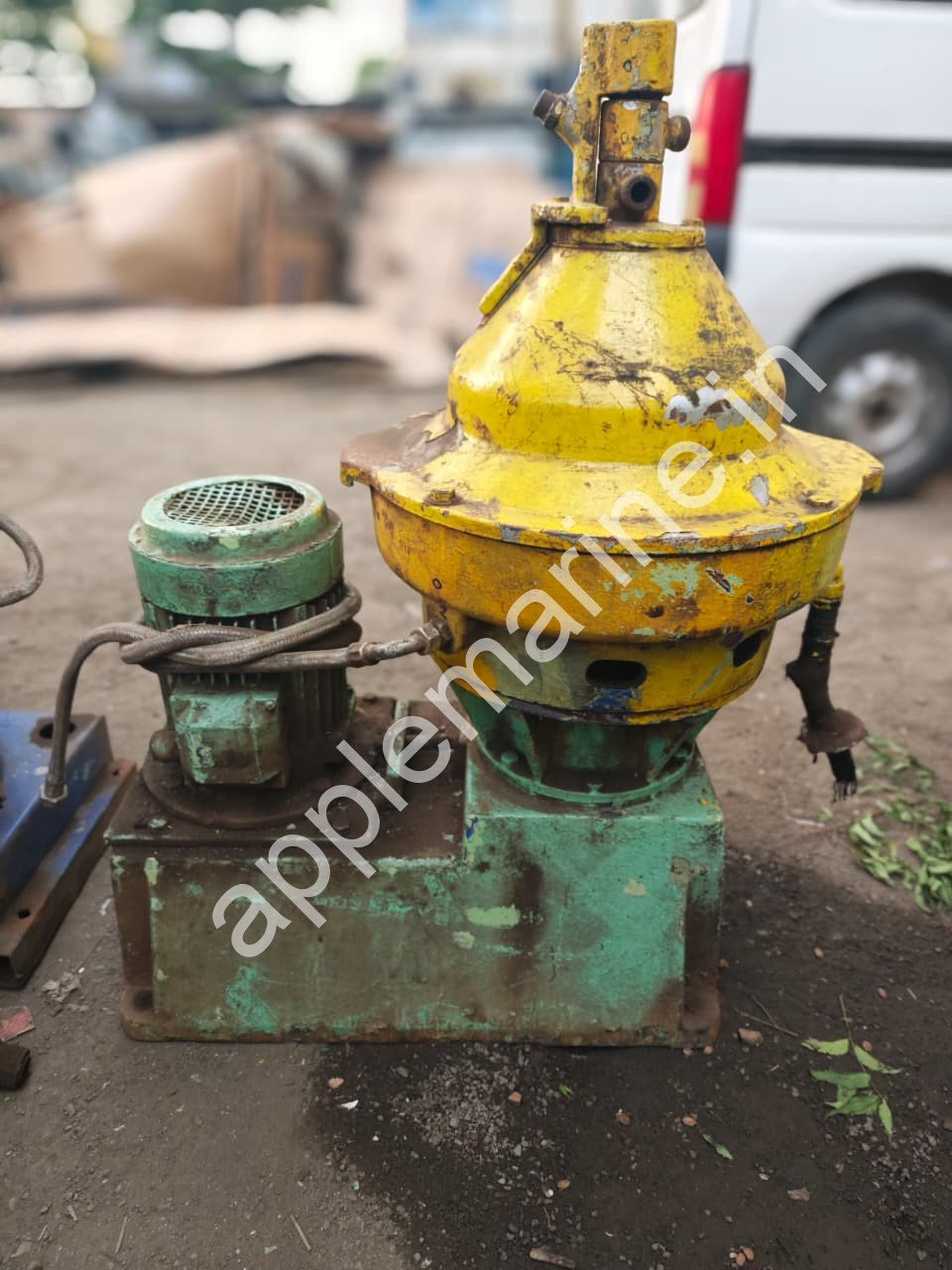

This used Alfa Laval MMPX 304 SGP-11 Centrifugal Separator (1997) is a premium, high-speed fluid purification system engineered for marine oil, diesel, and industrial lube treatment. Running at an impressive maximum bowl speed of 9305 RPM with a 3.0 kW motor rating, this Spanish-made partial-discharge separator provides reliable, continuous density-based separation.

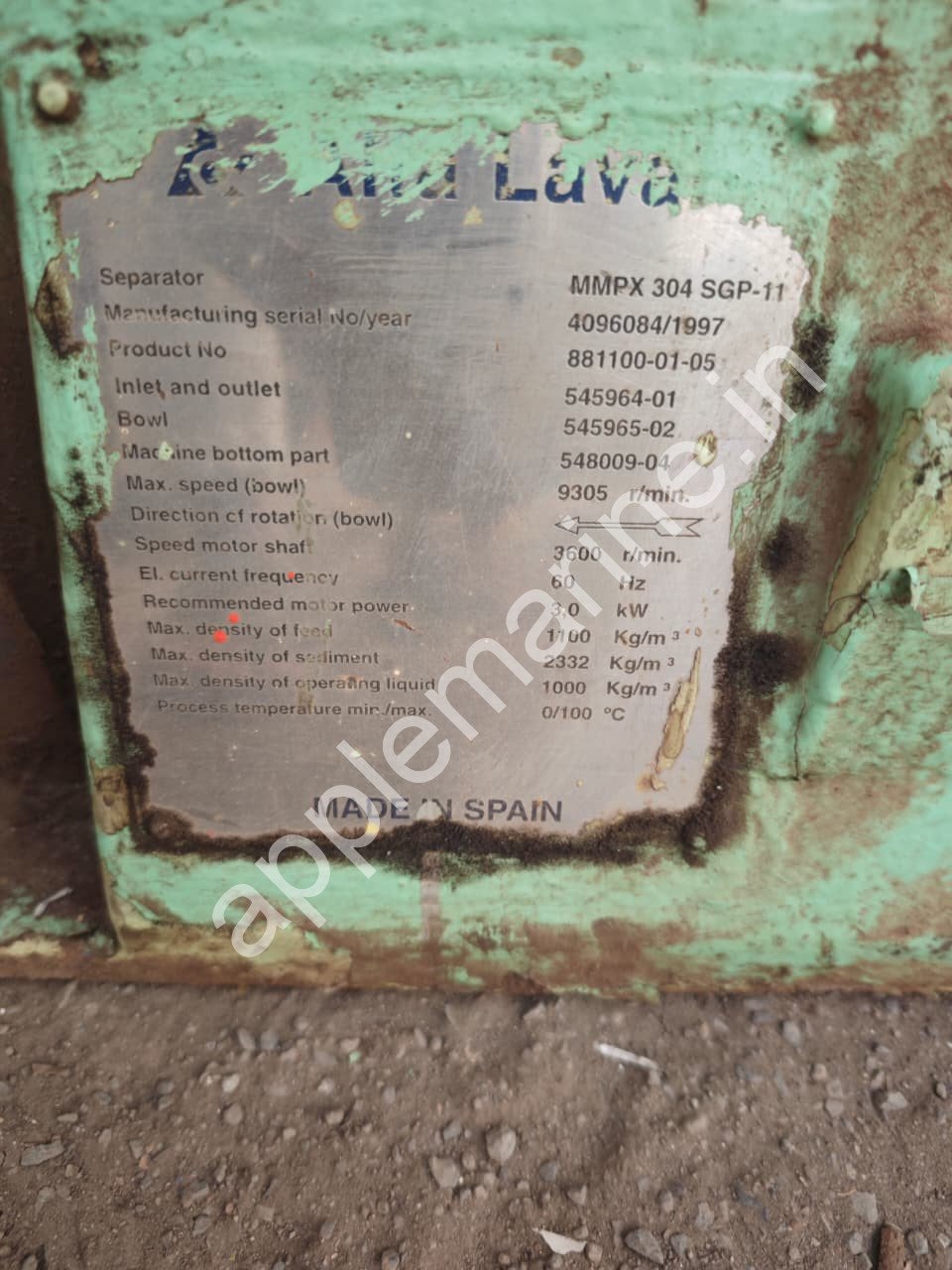

Technical Data:
* Brand: Alfa Laval
* Separator: MMPX 304 SGP-11
* Manufacturing serial No/year: 4096084/1997
* Product No: 881100-01-05
* Inlet and outlet: 545964-01
* Bowl: 545965-02
* Machine bottom part: 548009-04
* Max. speed (bowl): 9305 r/min.
* Direction of rotation (bowl): Left arrow indicated
* Speed motor shaft: 3600 r/min.
* El. current frequency: 60 Hz
* Recommended motor power: 3.0 kW
* Max. density of feed: 1100 Kg/m³
* Max. density of sediment: 2332 Kg/m³
* Max. density of operating liquid: 1000 Kg/m³
* Process temperature min./max.: 0/100 °C
* Country of Origin: Made in Spain
High-Speed Alfa Laval MMPX 304 SGP-11 Centrifugal Separator
Upgrade your industrial fluid management with this dependable, used Alfa Laval MMPX 304 SGP-11 Centrifugal Separator. Manufactured in Spain in 1997, this self-cleaning, partial-discharge disc-stack separator is highly favored across maritime, oil filtration, and manufacturing sectors for pulling water and heavy solids from processing liquids.
Key Engineering Specifications:
* Ultra-High-Speed Clarification: Delivers massive separation force via a maximum bowl speed of 9305 r/min and a motor shaft speed of 3600 r/min at a 60 Hz current frequency.
* Dense Sediment Separation: Purpose-built to handle dense sediment profiles up to 2332 kg/m³ and feed liquid densities of 1100 kg/m³.
* Broad Thermal Windows: Features steady mechanical execution within process operations ranging from freezing temperatures up to 100°C.
* Traceable OEM Part Numbers: Factory stamped with dedicated reference details for smooth parts sourcing (Inlet/Outlet: 545964-01, Bowl: 545965-02, Bottom Part: 548009-04, Serial: 4096084).
Why Buy This Alfa Laval Separator?
The Alfa Laval MMPX series is highly valued globally for minimizing fluid loss during sludge discharge and extending the lifespan of machinery components. Selecting this quality used 1997 build unit allows you to capture industrial-grade purification capacity while respecting your corporate maintenance budget.
